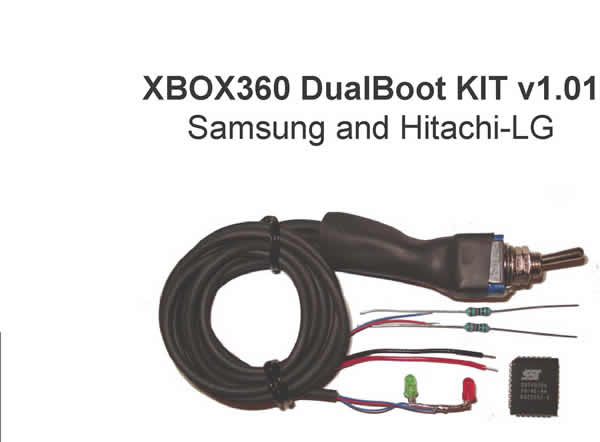

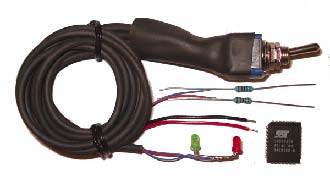

1 pcsDualBootcablewith switch

2 pcs10k ohm resistance

1 pcsSST39SF020A

Whatyou need!

•Torxscrewdrivers

T6 L Key, T8 L Key, T10 L Key, T15 L Key, T20 L Key, Metal Rod L Key, Mini Screwdriver

•Solderiron-solderthe SST chip

•Hot airgun-removethe epoxyfrom DVD drive mainboard

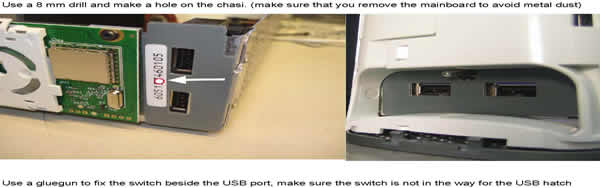

•8 mm dril-make the holefor the on/of switch

•Hot gluegun–fix the on/off switch

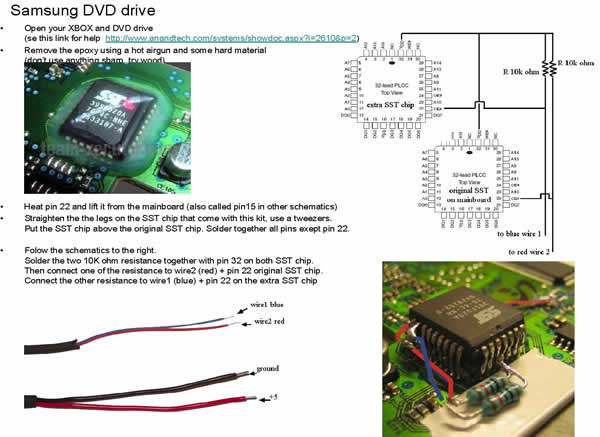

For Hitachi l LG DVD usethe same ideaas Samsung. The differenceis that you must usecablesto connectthe twochips, and cut onetrack.

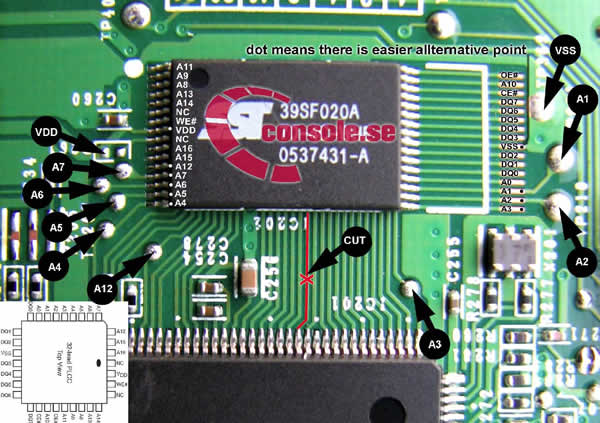

•Cut the track(CUT) markedin the diagrams

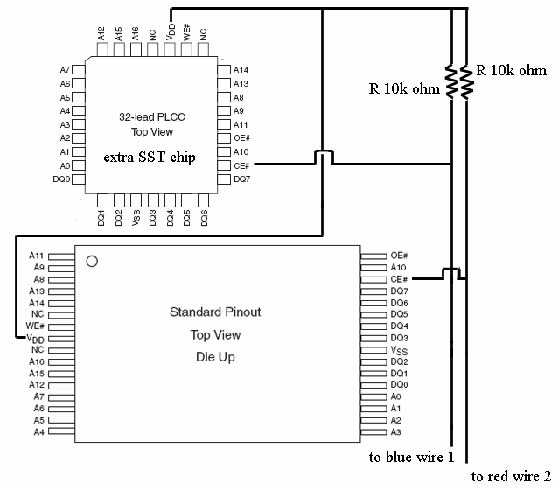

•Soldera wire from A11 on the Hitachi chip to A11 on the SST chip. Dothis for everypoint exaptVdd, CE# and NC (Not Conected)

Somepinshavepadsyou canusefor easierinstall,

•Solderthe two10K ohm resistancetogetherwith pin VDD on bothSST chip.

Thenconnectoneof the resistanceto wire2 (red) + pin CE# original chip.

Connectthe otherresistanceto wire1 (blue) + pin CE# on the extra SST chip

•Se nextpage for allternativepoints!

Hitachi –LG DVD drive

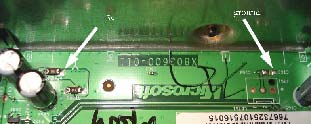

Solderground(black) cableto groundand +5v (red) cableto +5v

(locatednearthe USB ports)

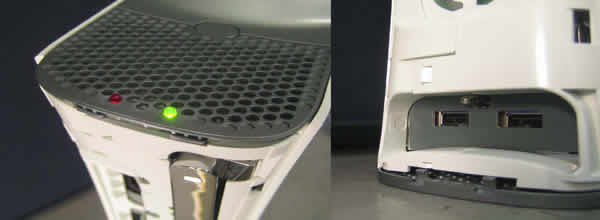

Green light = Modchipis off, safefor XBOXliveand updates.

Red light = Modchipis on, keepawayfrom XBOXliveand updates.

Dontforgetto program the extra SST chip with the Extreme firmware. Folowthis linkfor manual.

Thanx2:

Team Cavern, LittleJonnyTightMod360

Adminand Pantsiat console.se/ divineo.seforums

Schematics for the switch, you don’t need this if your kit is put together by us
